Northern Gulf Setting
1 Sea surface height anomaly

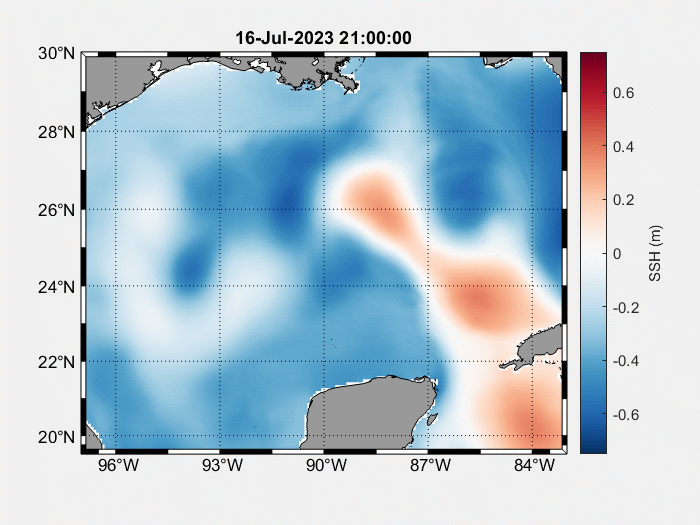

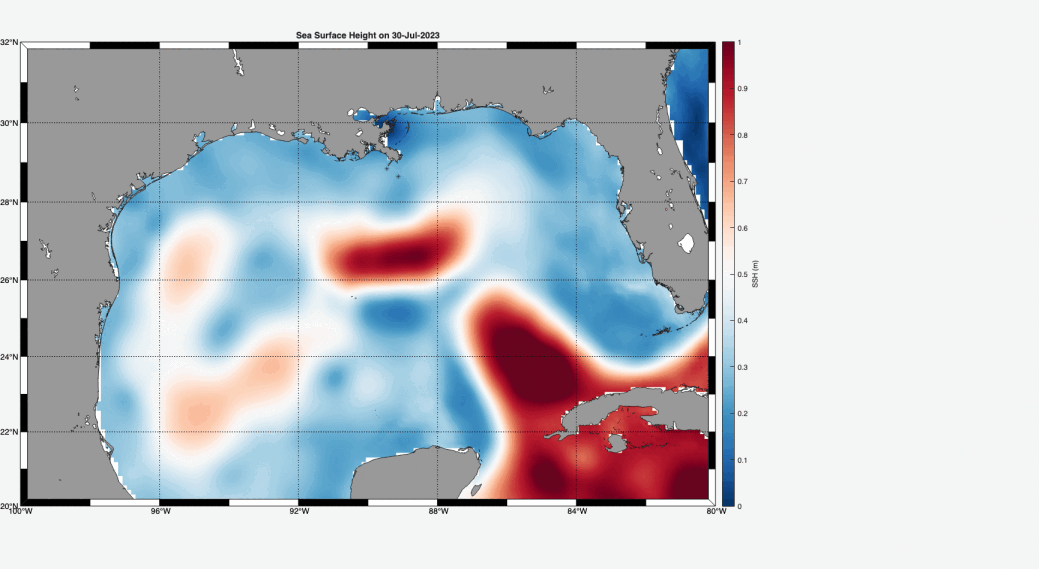

Animation of Northern Gulf Sea Surface Height (SSH) anomaly (m).
2 Sea surface temperature

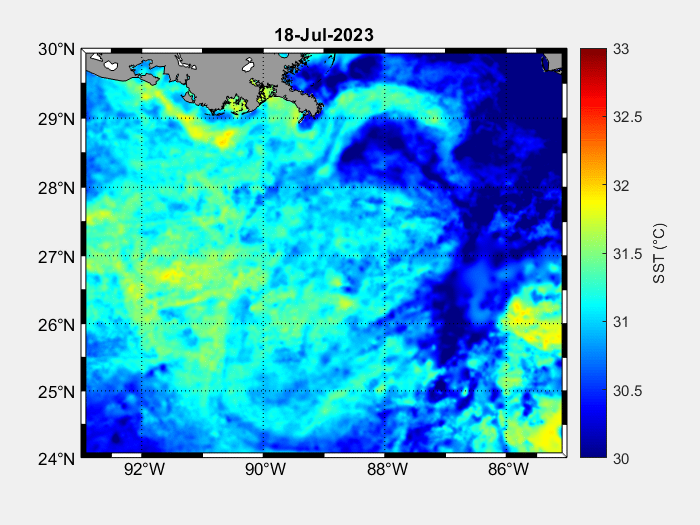

Animation of Northern Gulf Sea Surface Temperature (SST; °C).
% SSH Gif
% Loading smaller Gulf region data
load('HYCOM_SSH_data.mat');
data = HYCOM_reg1_latest2d;
clear HYCOM_reg1_latest2d
% Lat is 126x1, lon is 76x1
data.longitude(data.longitude > 180) = data.longitude(data.longitude > 180) - 360;
% Converts to 180 to -180 format
[data.lonm, data.latm] = meshgrid(data.longitude, data.latitude);
% data.ssh = reshape(data.surf_el, length(data.time), length(data.latitude), ...
% length(data.longitude));
% Converting time
junk = (data.time / 86400); % Seconds to days
n = datenum(1970,1,1);
data.ndate = n + junk;
data.date = datevec(data.ndate);
data.yr = data.date(:,1);
data.month = data.date(:,2);
data.day = data.date(:,3);
% data.time is in seconds since 1970-01-01 00:00:00 UTC
data.DateTime = datetime(1970,1,1,0,0,0) + seconds(data.time);
data.DateTime.TimeZone = 'UTC'; % ensures it’s in UTC
clear n junk
%% Loading full Gulf of Mexico data
load('HYCOM_fullGulf.mat');
data2 = HYCOM_reg1_latest2d;
clear HYCOM_reg1_latest2d
% Lat is 126x1, lon is 76x1
data2.longitude(data2.longitude > 180) = data2.longitude(data2.longitude > 180) - 360;
% Converts to 180 to -180 format
[data2.lonm, data2.latm] = meshgrid(data2.longitude, data2.latitude);
% data.ssh = reshape(data.surf_el, length(data.time), length(data.latitude), ...
% length(data.longitude));
% Converting time
junk = (data2.time / 86400); % Seconds to days
n = datenum(1970,1,1);
data2.ndate = n + junk;
data2.date = datevec(data2.ndate);
data2.yr = data2.date(:,1);
data2.month = data2.date(:,2);
data2.day = data2.date(:,3);
% data.time is in seconds since 1970-01-01 00:00:00 UTC
data2.DateTime = datetime(1970,1,1,0,0,0) + seconds(data2.time);
data2.DateTime.TimeZone = 'UTC'; % ensures it’s in UTC
clear n junk
%% Station Information
station = readtable("Grad23_coords_date.xlsx");
station.Time_UTC = datetime(station.Time_UTC, 'ConvertFrom','excel');
station.Time_UTC.Format = 'HH:mm:ss'; % Keeps UTC format from excel
% Combining calendar date and UTC time into one column
station.DateTimeUTC = datetime(station.Date) + timeofday(datetime(station.Time_UTC, 'Format','HH:mm:ss'));
station.DateTimeUTC.TimeZone = 'UTC'; % keep UTC
station = sortrows(station, 'DateTimeUTC');
% Fix longitudes to match -180 to 180
%station.NMEA_Lon(station.NMEA_Lon > 180) = station.NMEA_Lon(station.NMEA_Lon > 180) - 360;
station.NMEA_Lon = -station.NMEA_Lon; % So now it knows it's W, not E
%% Test GIF (check for which data using 1/2)
filename = '4-9-26 SSH.gif';
cutoffTime = datetime('02-Aug-2023 22:55:00', 'TimeZone', station.DateTimeUTC.TimeZone);
% For all transects except 4 included
for ii = 1:length(data2.time)
sqzdata = squeeze(data2.surf_el(ii,:,:)); % SSH
figure(1); clf
%m_proj('mercator', 'lon',[min(data.longitude) max(data.longitude)], 'lat',[min(data.latitude) max(data.latitude)]);
% m_proj('mercator', ...
% 'lon',[-97 -83], ...
% 'lat',[19.5 30])
% Full Gulf is lon(-97 -83), lat(19.5 30)
% ------ Sarah-asked coordinate zoom in
% Should be from 30°N to 26-27°N & 90-91 W to 87 W
m_proj('mercator', 'lon',[-91 -86], 'lat',[26 30])
% ------
m_pcolor(data2.lonm, data2.latm, sqzdata); shading interp;
m_gshhs_i('patch',[0.6 0.6 0.6]);
m_grid('box','fancy','tickdir','in')
hold on % Must be after m_pcolor or it breaks the map
colormap(m_colmap('diverging',256))
clim([-0.75 0.75]) % Minval = -0.534, maxval = 0.468
colorbar
ylabel(colorbar,'SSH (m)');
%title(datestr(data.DateTime(ii), 'dd-mmm-yyyy HH:mm:ss'))
title(string(data2.DateTime(ii), 'dd-MMM-yyyy HH:mm:ss'))
% Plots stations on the same day as SST anom data, not being overridden by time
%finished = dateshift(station.DateTimeUTC,'start','day') <= dateshift(data.DateTime(ii),'start','day');
%finished = station.DateTimeUTC <= data2.DateTime(ii);
% ----------- Cutting out last transect (S18 and after)
finished = station.DateTimeUTC <= data2.DateTime(ii) & ...
station.DateTimeUTC < cutoffTime;
% -----------
% Black/yellow
m_plot(station.NMEA_Lon(finished), station.NMEA_Lat(finished), 'Color', 'k', 'LineWidth', 0.5);
m_plot(station.NMEA_Lon(finished), station.NMEA_Lat(finished), 'p', 'MarkerFaceColor','y',...
'MarkerEdgeColor', 'k', 'MarkerSize', 2);
% idx = find(finished);
% for k = 1:length(idx)
% m_text(station.NMEA_Lon(idx(k)) + 0.1, ... % small offset
% station.NMEA_Lat(idx(k)), ...
% string(station.Station(idx(k))), ...
% 'fontsize',2, ...
% 'color',[0.1 0.1 0.1], ...
% 'fontweight','bold');
% end
% Get frame
frame = getframe(gcf);
[imind, cm] = rgb2ind(frame.cdata, 256);
%imwrite(frame.cdata, sprintf('SSH_frame_%03d.png', ii));
% Saves every frame as picture
if ii == 1
% First frame creates the GIF
imwrite(imind, cm, filename, 'gif', 'Loopcount', Inf, 'DelayTime', 0.5);
else
% Subsequent frames append
imwrite(imind, cm, filename, 'gif', 'WriteMode', 'append', 'DelayTime', 0.5);
end
end
clear imind idx k
%% Finding max and min SSH values for colorbar limits
minVal = min(sqzdata(:));
maxVal = max(sqzdata(:));
%% Frame snapshots
% Number of frame in gif is 30 (entire gif must be ran to know)
% info = imfinfo('3-30-26 zoomed SSH.gif');
% length(info) % Total of 220 frames
% Brings up a specific frame
[img, cmap] = imread('4-9-26 SSH.gif', 'Index', 117); % Last number is the frame
imshow(img, cmap)
% Frame 50 is July 23, 2023 0000
% Frame 98 is July 29, 2023 0000
% Frame 122 is Aug 1, 2023 0000
% Frame 200 has all 3 transects (Aug 10, 2023, 1800)
% 117 used for Hu paper snapshots!
